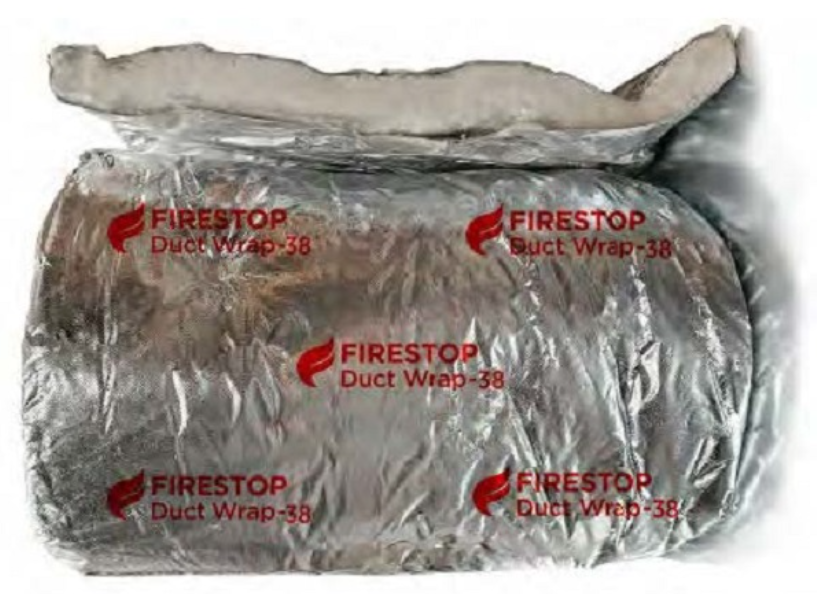

Firestop Duct Wrap Foil Face - (38mm thick insulation)

FIRESTOP DUCT WRAP - Tested & Approved up to 3 hours AS1530.4-2005

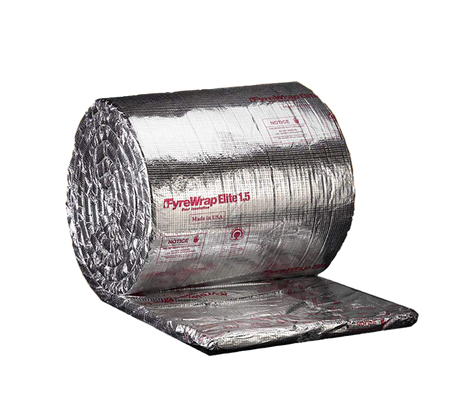

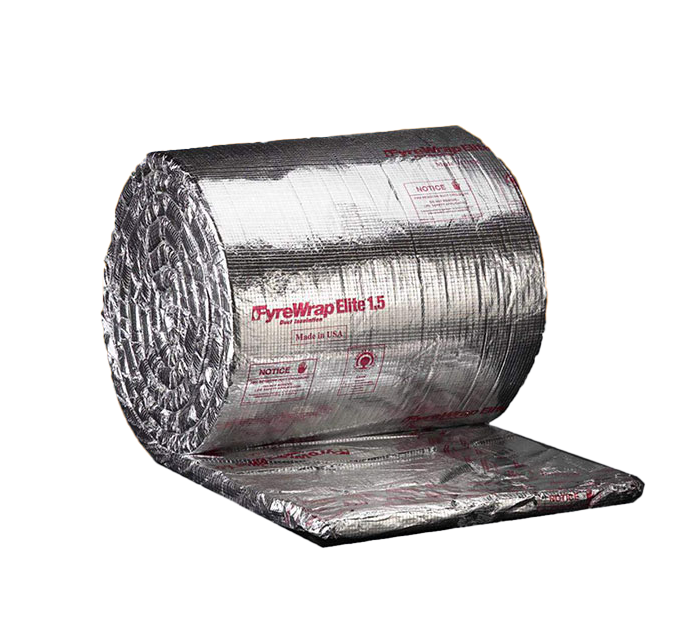

FIRESTOP DUCT WRAP is a foil-faced Fire Protection Wrap/Blanket designed to provide fire rating to Ducts, Kitchen Exhausts, Smoke Spill Systems, Penetration Seals & Structural Steel Elements.

Fire Wrap’s core material is Highly Engineered Lightweight with High Temperature Thermal Insulation material Insulfrax which is made from Calcia, Magnesia & Silica chemistry designed to enhance Bio-Solubility.

Fire Wrap’s Aluminium F  oil, Fiberglass–Reinforced Scrim completely encapsulates the core providing additional handling strength, protection from tearing and most importantly provides High Resistance to Mould Growth.

Fire Wrap is easily Identified in the field by Building Certifiers and Engineers and has had extensive testing to ensure that it meets the highest quality in terms of the impact on Environmental Health.  The material is completely Bio-Soluble and Fire Wrap has been Green-guard listed for Microbial (Mould Growth) Resistance.

Uses:  Duct Access Panels, Dampers, Service Penetration Upgrades & Hard to Reach Areas on Site

∙ Quick & Efficient

∙ Clean, Safe & Easy to Install, Low Environmental Impact

∙ Off-site Installation is possible, assisting in effective Project Co-ordination

∙ No Masking Required, Simple Repair (tape up or replace section)

∙ Mould Resistant

∙ Clear Identification for Fire Certification & Auditing purposes

∙ Vibration Tolerant

∙ Lightweight (up to 5x lighter than traditional fire spray)

1. a) For Ducting less than 600mm x 600mm, a 19mm wide 0.4mm thick Steel Band is used to permanently support Fire Wrap  around the Duct.  The Steel Band is placed 40mm from the edge of the Fire Wrap blanket, over the overlaps & one additional band between the overlaps at 265mm centres.
2. b) For Ducting greater than 600mm x 600mm but less than 1200mm x 1200mm, the Banding System described in a). is used in conjunction with either Pre-welded Pins/Cup Head style Pins along the bottom of the duct at 200mm apart.
3. c) For Ducting greater than 1200mm x 1200mm, either Pre-welded Pins or Cup Head style Pins over all 4 sides of Duct  MUST be Used at 200mm apart.

 Use Stainless Steel Cable Ties #CABTIES and Insulation Fasteners #PINW112
