PRP-1 Instrument Test Port Fitting

PRP-1 Instrument Test Port Fitting - for Duct Performance Monitoring

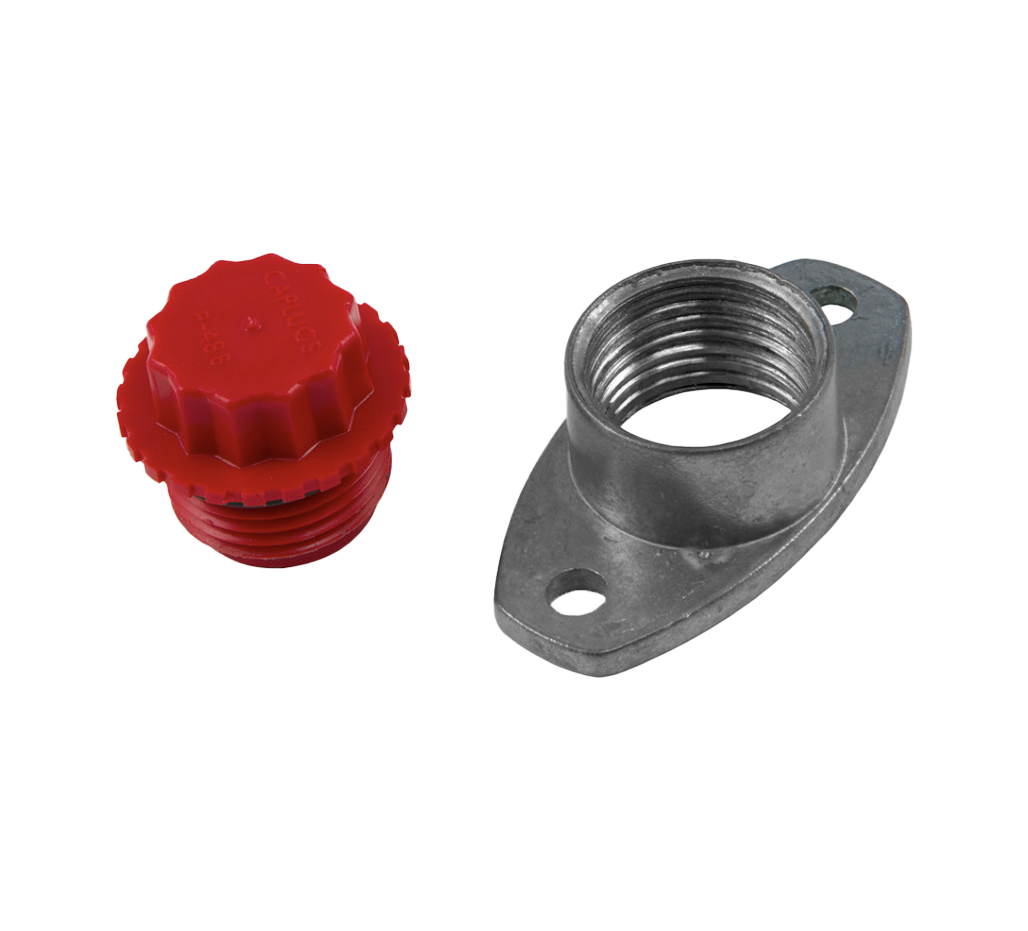

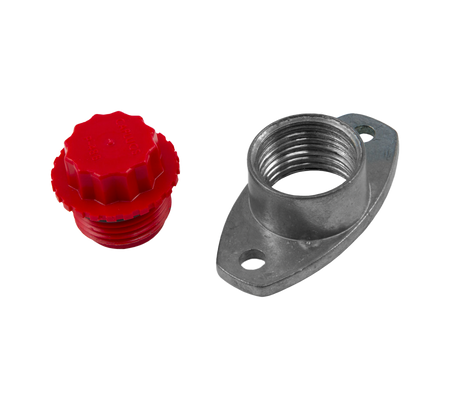

Consists of a ZAMAC (zinc) alloy body casting is installed over a Sponge Neoprene Gasket.

The housing 3/4” Port Opening is internally threaded to accept a precision moulded high density Polyethylene

Plug, fitted with a Neoprene “O” ring, rendering it Leak Proof.

Red Button makes it easy to locate when Conducting Pressure/Velocity Tests withstanding Continuous Intermittent Operating Temperatures of 165˚ F (72˚ C) and 215˚ F (100˚ C) & Freezing Temperatures down to -94˚ F (-70˚ C).
