Trade Seal - Building Envelope Penetration Seal

SKU: TS1522
Regular price $29.99 NZD

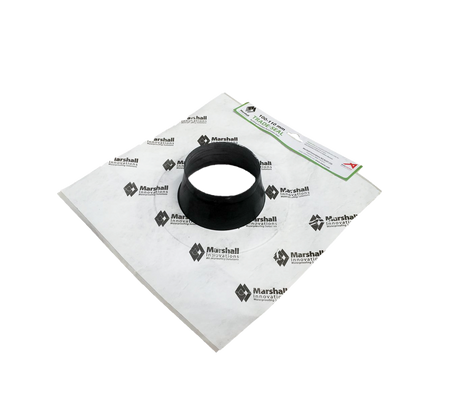

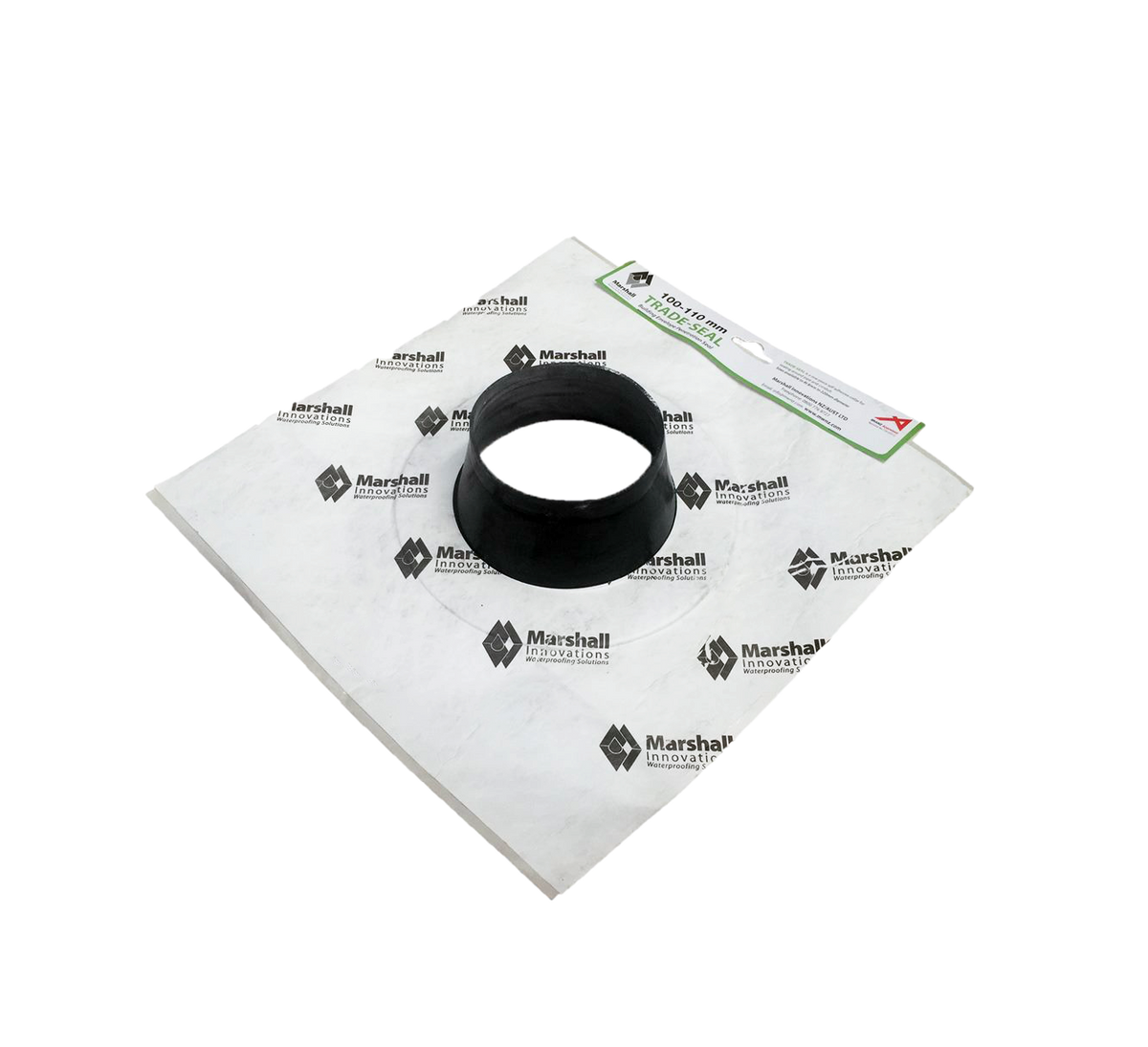

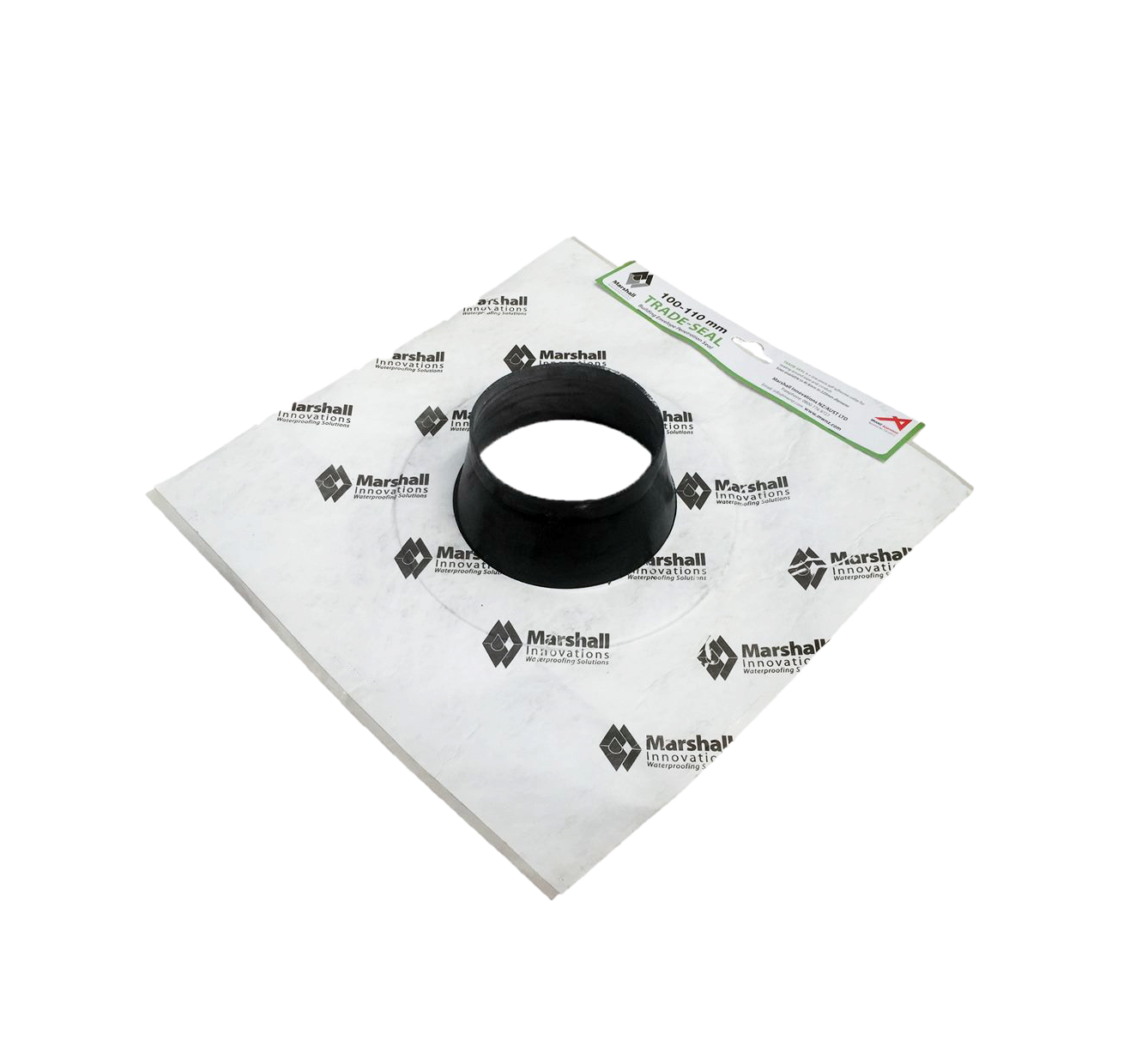

TRADE SEALS – Building Envelope Penetration Seal

1 piece Self Adhesive Waterproofing Collar for sealing around Pipe & Conduit

  • One Component Secondary Flashing System
  • Can be used on all accepted Wall Underlays including Bituminous Paper
  • Can be installed on the inside of RAB systems & Wall Underlay’s - Retrofit Installation
  • Requires NO Adhesives to hold in place
  • Can be left exposed to Weather & UV for up to 90 Days
  • Will Adhere to most clean & dry substrates including Fibre Cement & Ply RAB Board
  • Additional Sizes: 8-12mm, 42-55mm, 75-90mm, 125-135mm & 200-220mm  POA, Leadtime 2 Days

Installation Instructions:

  1. Select size of TRADE-SEAL—Collar should be Tight
  2. Trade-Seal Collar extension should be trimmed to get the best fit
  3. Trade-Seal must not be forced onto the penetration
  4. Ensure the surface to receive the Trade-Seal is clean & dry
  5. Remove the backing paper & slide the collar over penetration
  6. Adhere Trade-Seal at  45˚ to aid moisture run off
  7. Smooth Trade-Seal onto the substrate to ensure adhesion
  8. Push Trade-Seal collar back onto penetration to fit cavity width
