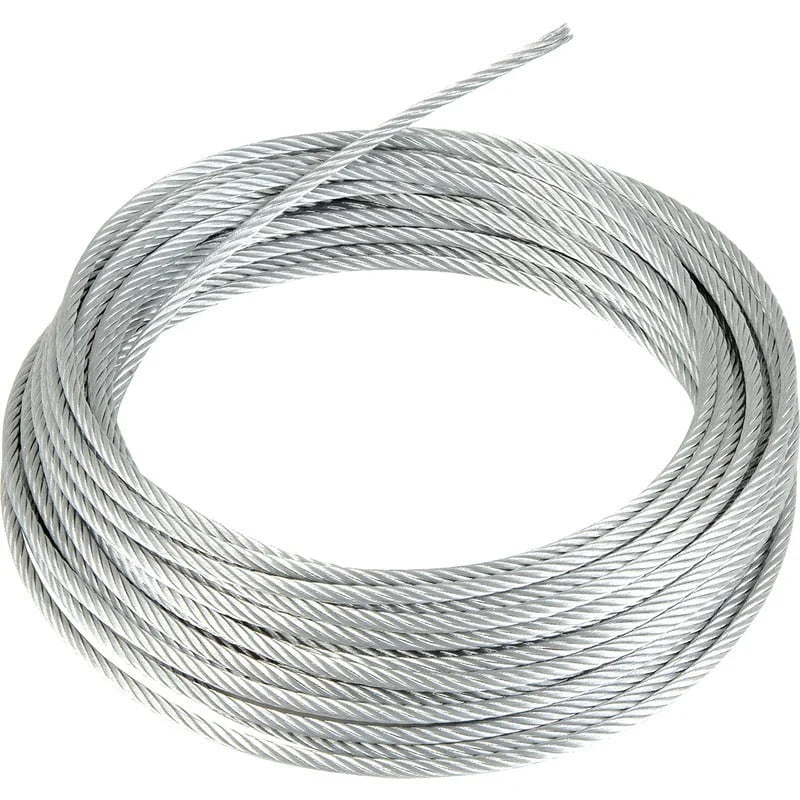

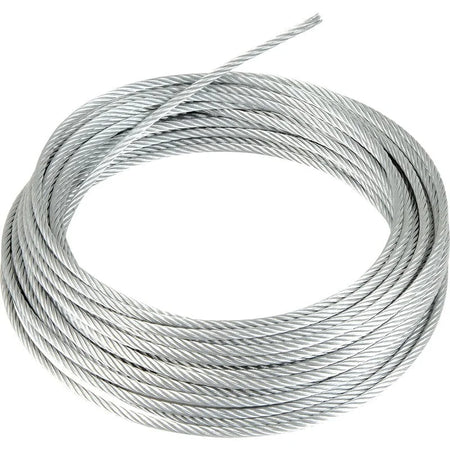

Zip Clip, Clamp - Wire Rope

KWIKWIRE CLAMP with WIRE ROPE is designed to suspend static loads.  Its Hanging and Installing Service applications include Ducting, Roof Suspension Systems, HVAC, Signs, Hanging Mechanical Services, Electrical Services, Installing Cable Trays, Strut, Lights, Shade Sails, Mining Supports, Balustrade and Catenary.

Rectangular/Circular duct is one of the most common applications used with KwikWire Clamp. The hangers can be attached to bearers, fastening points on the duct if available, or used in a cradle method.

Suspend ducting from the ceiling is fast using the KwikWire Clamp Cable System

(1) Pass the wire rope through, looping around & back through KwikWire™ Clamp

(2) Push wire rope through clamp leaving 2” to 3” tail, then apply tension on wire rope

(3) To adjust, remove tension and pull the wire rope slightly to disengage teeth, slide adjustment pin in the direction shown by the arrow to release wire rope.

No tools are required.

KwikWire Clamps can be installed both quickly and easily for Suspending or Bracing:

∙ Mechanical and Electrical Services

∙ Seismic Bracing & Other Suspended Services

∙ Heating, Ventilation & Air-Conditioning Services

∙ Panels for Cold Rooms

KwikWire System Recommendations:

∙ Don't Exceed the Safe Working Load of the products

∙ Don't apply Lubricant, use in Chlorinated/Caustic atmospheres, use in Dry locations only

∙ Don't use if Cable/Components are Visibly Distorted/Worn.  Remove Damaged Cable prior to use

∙ Don't Paint Cable near Working Area of KwikWire Clamp

**********************************************************************************************

Also available are the Zip Clip Clamps

KL50 (#CABCLZCKL50) - up to 10kg

KL100 (#CABCLZCKL100) - up to 50kg

KL150 (#CABCLZCKL150) - up to 120kg

KL200 (#CABCLZCKL200) - up to 230kg

KL600 (#CABCLZCKL600) - up to 500kg

***KL50 Clamps - use with KL50 Wire Rope (1.0-1.5mm thick)

***KL100 Clamps - use with KL100 Wire Rope (1.5-2.5mm thick)

***KL150 Clamps - use with KL150 Wire Rope (2.5-3mm thick)

***KL200 Clamps - use with KL200 Wire Rope (3-5mm thick)

***KL600 Clamps - use with KL600 Wire Rope
