Please Note: All Zip Clip Seismic Kits Must be Sold in full Packets or 2 (ie. a minimum of 2x Wires to be ordered at one time & orders MUST be in Denominations of 2 so FULL PACKETS are SUPPLIED)
ZIP-CLIP Seismic System has 3 different sizes of Colour Coded Wire Rope Seismic Brace which are used to restrain Non-Structural Components at regular intervals. R System (Red), B System (Blue) & GY System (Green/Yellow) are Visible from Top & Bottom of each brace to easily identify in the field. Each Colour represents a different Load Bearing Capacity
Zip-Clip Seismic Braces have been independently strength tested following ASCE 19, ASTM A1023, ASTM A931 & NZD 4219 to determine Characteristic Break Strengths.
They have also been Seismically tested using Tri-Axial Shake Table apparatus by Element Materials Technology at the Earthquake & Engineering Laboratory in Bristol University, UK following ICC ES AC156 & IEE344—Seismic Qualification for equipment in Nuclear Power Stations.
System Strengths: Advantages of Wire Rope Seismic Braces are:
- Speedy Installation & Adjustment
- Wire Rope can be any Length
- Angular Adjustment is very Easy
- Tensile Load on Primary Supports not affected by using this

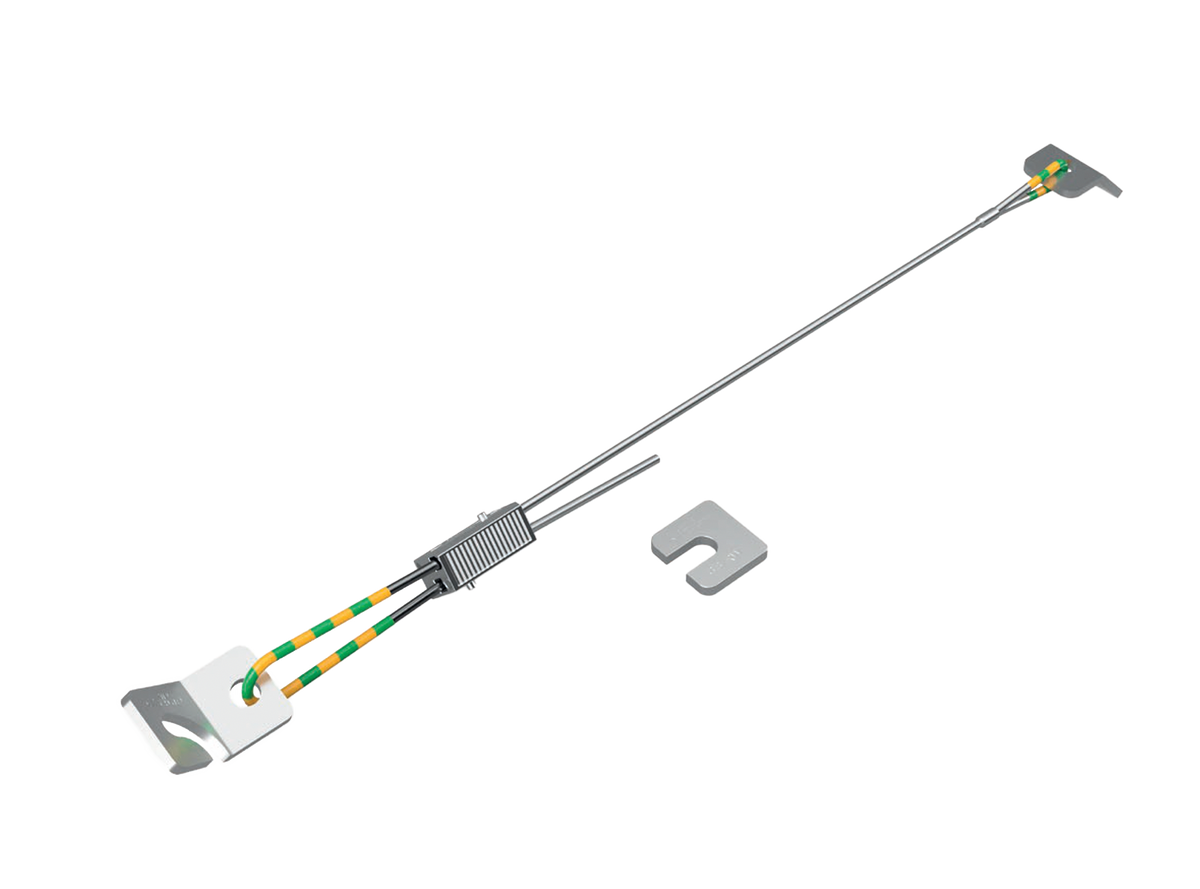

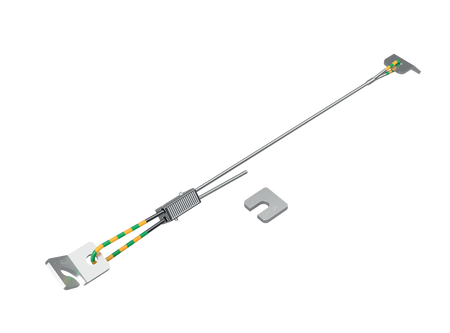

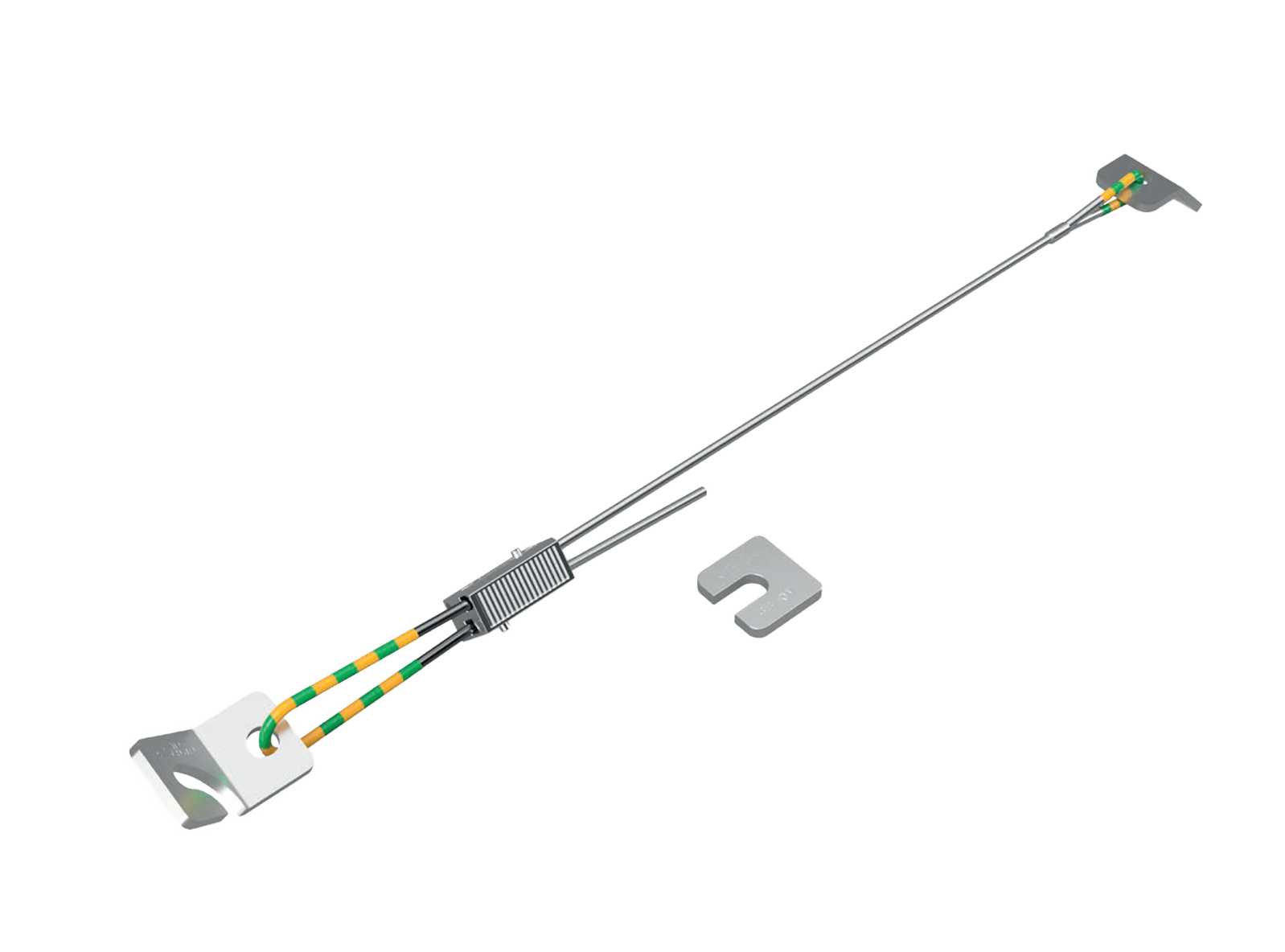

Each Zip-Clip Seismic System is supplied as a complete Kit including the following:
Seismic Bracket: Anchors the Brace to a Supporting Structure
Wire Rope: Transfers the Load to the Building Structure
Locking Device: Attaches Brace to Services
Retrofit Bracket: Anchors Wire Rope to Primary Supports
Seismic Restraint Washer: Clamps Retrofit Bracket to Services
PVC Sleeve: Ground Identification & Protection
Available in Cartons of 50
Price is on Application – Please contact us
